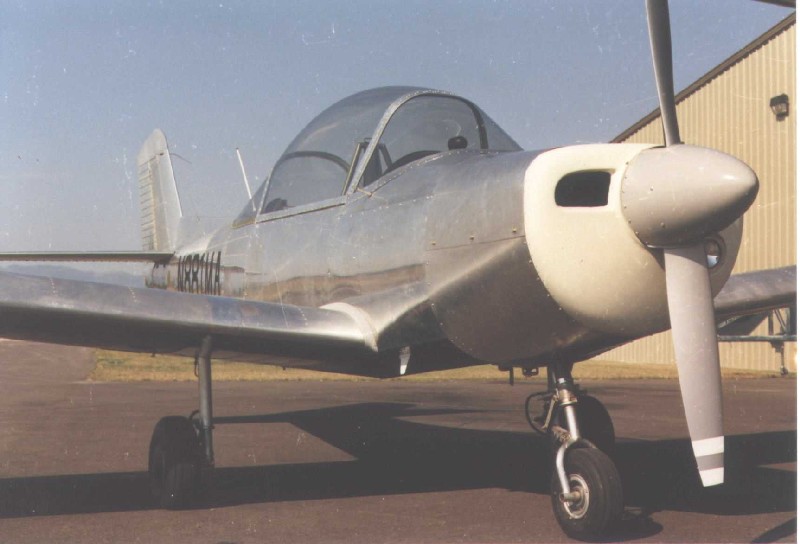

This
right front view of the Montanair "Spirit" shows some of the changes
made to the nose of the airplane. The spinner is a duplicate of a 14"
diameter unit used on a Piper Cherokee 180. The Varga has a 12" diameter
spinner from the Cherokee 140. The "Spirit" propeller is also the same
as that used on the Cherokee 180, which is a 76" Sensenich with a 60"
pitch a 1.25" spacer. The Varga 2180 has a 76" diameter 60" pitch
Sensenich without a spacer. The nose cowl is similar in construction to the
original Varga, but the fiberglass nose bowl is my own design and the firewall
shape was changed to make the cowl fit better around the 0-360 180 hp Lycoming
engine.

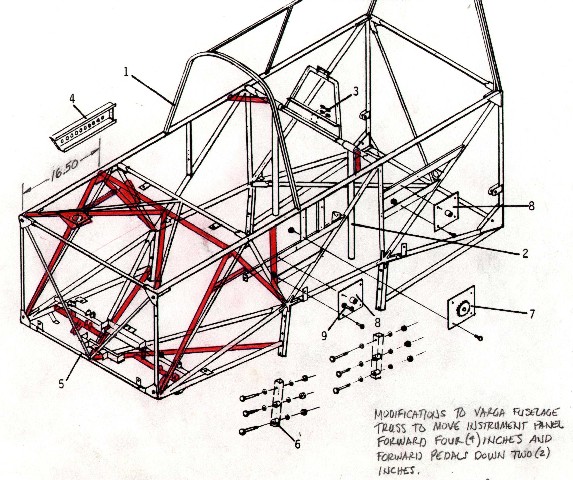

This
drawing shows the 3 inch fuselage stretch forward of the wing leading edge.
This stretching and lowering of the forward pedals 1.5" added significantly
more leg room for the pilot. The forward pedals given a 4" adjustment range
to accommodate both short and tall pilots.

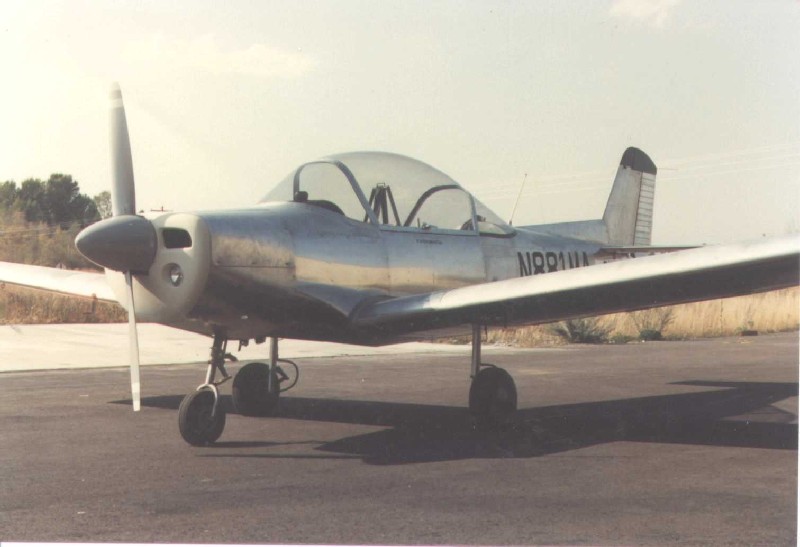

This
left side view shows the shape of the canopy and the new vertical tail. The
original bow shape was retained to make retrofitting easier. The canopy glass
was designed to be tallest at the pilots head and the same height as the
original Varga above the passengers head. The vertical tail was moved aft more
than two feet and and rudder area added below the horizontal tail in an effort
to improve spin recovery. The dorsal fin was added only for appearance. (It
should be noted that, as certified, the original Varga WILL NOT SPIN (OK, maybe
a stalled spiral), but during Varga 2180 certification flight testing several
degrees of increased elevator travel were added and we experienced an
unrecoverable spin. The extra elevator travel was removed and spin tests
proceeded without incident.)

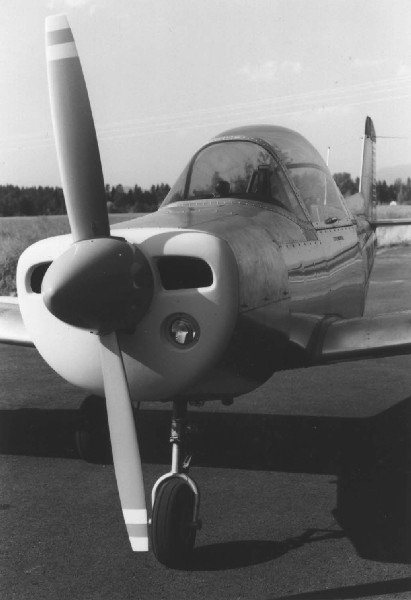

The
left front view again shows the nose cowl, prop and spinner. The
carburetor air inlet box was installed in the left cooling air inlet and ducted
to a new carb heat box.

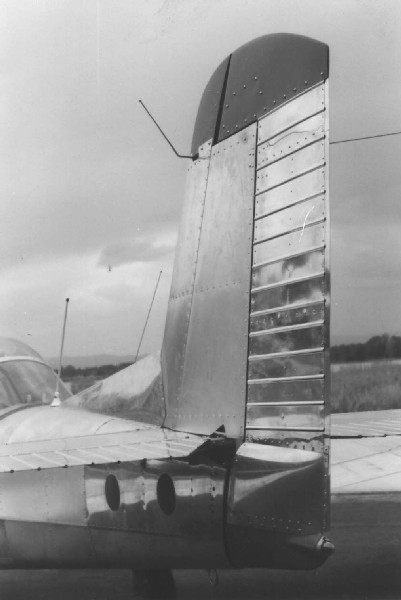

This
close-up of the vertical tail shows the relatively large aero counter-balance,
the rudder area under the horizontal tail and the split elevator. The aero
counter-balance and elimination of the rudder centering were intended to reduce
rudder pressure, which they did. I left Montanair before completion of their
spin testing, but my understanding is that these modifications by themselves had
little or no effect on spin recovery with increased elevator travel.
